Wood Materials - (2 ea 2"x2"x6' and 12" piece of 2x4)

2 each 2"x2"x8" (Feet)
2 each 2"x2"x16" (Upper legs)
2 each 2"x2"x22" (Lower legs)
1 each 1"x2"x9" (rocker arm)
1 each 2"x4"x11" (Hip area cross piece)

Aluminum Flat Bar (1/8"x3/4")  - (3')

2 each 16" length (Leg linkages)
1 each 3" length (Motor linkage)

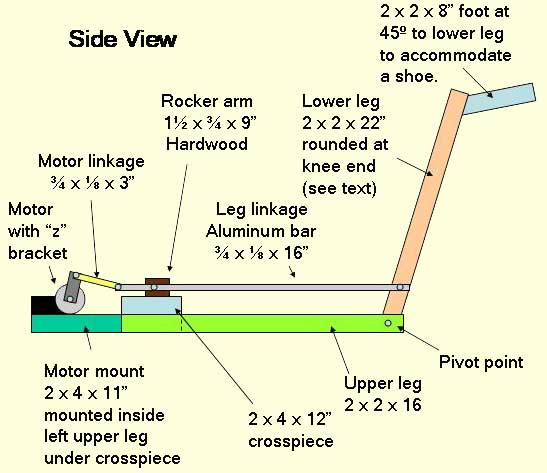

(The 'z' bracket shown on the drawing is included with the wiper motor)
